Well Service Pump

Home > Well Service Pump

Well Service Pump

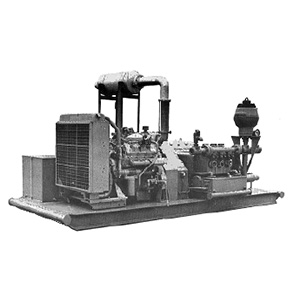

PAH - TRIPLEX PUMP

PAH_15-237-WS_Well_Servicing_Bulletin

Standard Featured

  • Suction Opening: 6″ (152 mm) ASA 150# flange, beveled for welding
  • Discharge Connection: NPT 2 9/16″ (65 mm) API 10,000 # flange, beveled for welding either side
  • Jackshaft Extension
    • Diameter: 4.25″
    • Length: 8.6″ (218 mm)
  • Dimensions
    • Length: 106″
    • Height: 51.5″
    • Weight: 66.75″
Contact

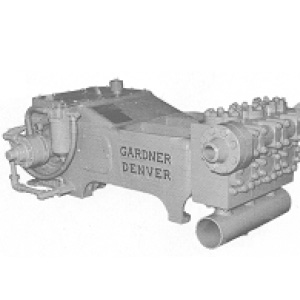

TEE TRIPLEX WELL SERVICING PUMP

TEE_3-1-233_Bulletin

Standard Featured

  • Maximum BHP: 165
  • Maximum Jackshaft RPM: 300
  • Stroke Length: 5 in. (203 mm)
  • Oil Capacity: 12 gal. (45 liters)
  • Pump Weight: 3,230 lbs. (1,451 kg)
  • Piston Rod Load: 22,030 lbs. (9,990 kg)
Contact

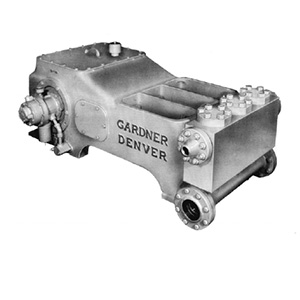

TEE (GD-125T)

TEE_7-1-205-version-5

Standard Featured

  • Maximum BHP: 125 (93 kw)
  • Maximum RPM: 350
  • No. of Plungers: 3
  • Stroke Length: 5 in. (127 mm)
  • Plunger Load: 8,490 lbs. (3,859 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 3,000 psi (211 kg/cm2)
    • MP – 5,000 psi (352 kg/cm2)
    • HP – 6,000 psi (1,055 kg/cm2)
  • Oil Capacity: 12 gal. (45 liters)
  • Pump Weight: 3,230 lbs. (1,451 kg)
Contact

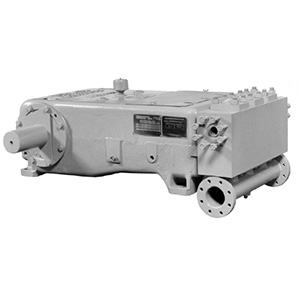

TFE (GD-205T)

TFE_7-1-209

Standard Featured

  • Maximum BHP: 205 (153 kw)
  • Maximum RPM: 370
  • No. of Plungers: 3
  • Stroke Length: 5 in. (127 mm)
  • Plunger Load: 13,165 lbs. (5,970 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 3,000 psi (211 kg/cm2)
    • MP – 7,410 psi (521 kg/cm2)
    • HP – 15,000 psi (1,055 kg/cm2)
  • Oil Capacity: 14,5 gal. (55 liters)
  • Pump Weight: 3,355 lbs. (1,522 kg)
Contact

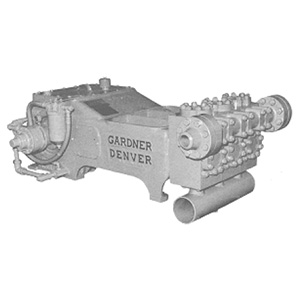

TGE TRIPLEX WELL SERVICING PUMP

TGE_04-203_Bulletin

Standard Featured

  • Crankcase Oil Capacity: 12 gallons (45 liters).
  • Suction Opening: 6″ (152 mm) 150# welding flange.
  • Discharge Connection: 9/16″ (66 mm) weld neck API 10,000# PSI
  • Length: 69.8″ (1773 mm)
  • Height: 26.8″ (681 mm)
  • Weight: Dry, less skid: 3,200 lbs (1,451 kg)
Contact

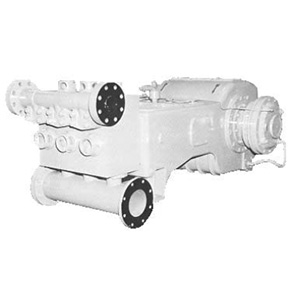

TGF TRIPLEX WELL SERVICING PUMP

TGF_04-201_Bulletin

Standard Featured

  • Crankcase Oil Capacity: 23 gallons (87 liters).
  • Suction Opening: 8″ 150# welding flange.
  • Discharge Connection: 3 1/16″ api 10,000 # welding flange
  • Length: 93.7″ (2380 mm)
  • Height: 39.15″ (955 mm)
  • Weight: Dry, less skid: 7,450 lbs (3,386 kg)
Contact

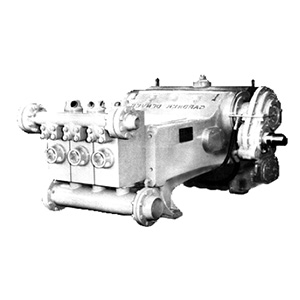

TGH TRIPLEX WELL SERVICING PUMP

TGH_04-202_Bulletin

Standard Featured

  • Crankcase Oil Capacity: 30 gallons (114 liters).
  • Suction Opening: 6″ (152 mm) 150# welding flange.
  • Discharge Connection: 2 9/16″ (66 mm) api 10,000 # PSI beveled for welding either side
  • Length: 93.2″ (1230 mm)
  • Height: 51.5″ (1310 mm)
  • Weight: Dry, less skid: 9,360 lbs (4,246 kg)
Contact
