Production Pump

Home > Production Pump

Production Pump

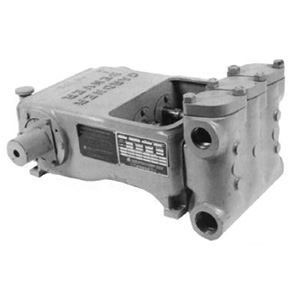

TQB (GD-25T)

GD-25T-(TQB)-7-1-210

Standard Featured

  • Maximum BHP: 27 (20 kw)
  • Maximum RPM: 600
  • No. of Plungers: 3
  • Stroke Length: 2 in. (51 mm)
  • Plunger Load: 2,680 lbs. (1,216 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 3,400psi (239 kg/cm2)
  • Oil Capacity: 2.5 gal. (9.5 liters)
  • Pump Weight: 570 lbs. (259 kg)
Contact

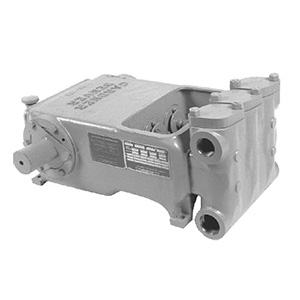

TQW (GD-45T)

GD-45T-(TQW)-7-1-201

Standard Featured

  • Maximum BHP: 46 (34 kw)
  • Maximum RPM: 550
  • No. of Plungers: 3
  • Stroke Length: 2.5 in. (63.5 mm)
  • Plunger Load: 4,000 lbs. (1,814 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 3,400 psi (239 kg/cm2)
    • HP – 7,500 psi (527 kg/cm2)
  • Oil Capacity: 4 gal. (15 liters)
  • Pump Weight: 730 lbs. (331 kg)
Contact

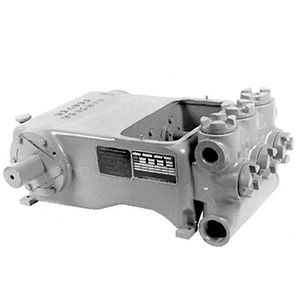

TQC (GD-55T)

GD-55T-(TQC)-7-1-202

Standard Featured

  • Maximum BHP: 52.5 (39 kw)
  • Maximum RPM: 400
  • No. of Plungers: 3
  • Stroke Length: 3 in. (76 mm)
  • Plunger Load: 5,200 lbs. (2,360 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 3,300 psi (232 kg/cm2)
  • Oil Capacity: 6.5 gal. (25 liters)
  • Pump Weight: 970 lbs. (440 kg)
Contact

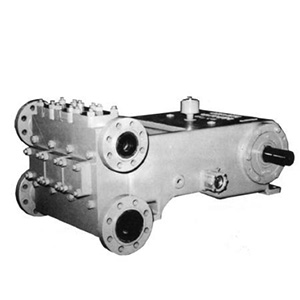

TAC (GD-65T)

GD-65T-(TAC)-7-1-203

Standard Featured

  • Maximum BHP: 65.5 (49 kw)
  • Maximum RPM: 500
  • No. of Plungers: 3
  • Stroke Length: 3 in. (76 mm)
  • Plunger Load: 5,200 lbs. (2,360 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 3,300 psi (232 kg/cm2)
    • MP – 4,500 psi (316 kg/cm2)
    • HP – 7,500 psi (527 kg/cm2)
  • Oil Capacity: 6 gal. (23 liters)
  • Pump Weight: 1,790 lbs. (812 kg)
Contact

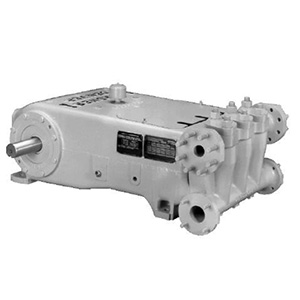

TDD (GD-100T)

GD-100T-(TDD)-7-1-211

Standard Featured

  • Maximum BHP: 100 (75 kw)
  • Maximum RPM: 425
  • No. of Plungers: 3
  • Stroke Length: 4 in. (102 mm)
  • Plunger Load: 7,175 lbs. (3,255 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 2,190 psi (154 kg/cm2)
    • HP – 4,470 psi (314 kg/cm2)
  • Oil Capacity: 10.5 gal. (40 liters)
  • Pump Weight: 2,900 lbs. (1,315 kg)
Contact

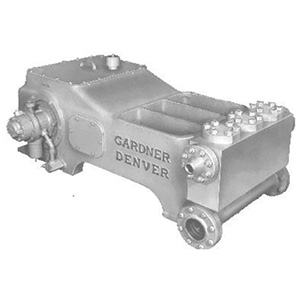

TEE (GD-125T)

GD-125T-(TEE)-7-1-205

Standard Featured

  • Maximum BHP: 125 (93 kw)
  • Maximum RPM: 350
  • No. of Plungers: 3
  • Stroke Length:  5 in. (127 mm)
  • Plunger Load: 8,490 lbs. (3,859 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 3,000 psi (211 kg/cm2)
    • MP – 5,000 psi (352 kg/cm2)
    • HP – 6,000 psi (1,055 kg/cm2)
  • Oil Capacity: 12 gal. (45 liters)
  • Pump Weight: 3,230 lbs. (1,465 kg)
Contact

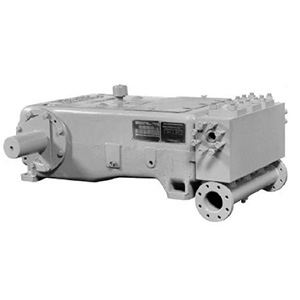

TAE (GD-150T)

GD-150T-(TAE)-7-1-206

Standard Featured

  • Maximum BHP: 150 (112 kw)
  • Maximum RPM: 370
  • No. of Plungers: 3
  • Stroke Length:  5 in. (127 mm)
  • Plunger Load: 9,633 lbs. (4,378 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 3,000 psi (211 kg/cm2)
    • MP – 7,410 psi (521 kg/cm2)
    • HP – 15,000 psi (1,055 kg/cm2)
  • Oil Capacity: 14 gal. (55 liters)
  • Pump Weight: 3,355 lbs. (1,522 kg)
Contact

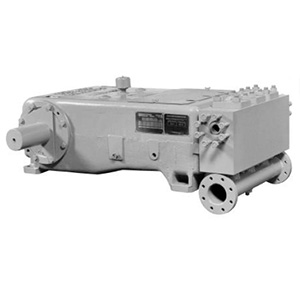

TDE (GD-180T)

GD-180T-(TDE)-7-1-208

Standard Featured

  • Maximum BHP: 180 (134 kw)
  • Maximum RPM: 370
  • No. of Plungers: 3
  • Stroke Length:  5 in. (127 mm)
  • Plunger Load: 11,560 lbs. (5,242 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 3,000 psi (211 kg/cm2)
    • MP – 7,410 psi (521 kg/cm2)
    • HP – 15,000 psi (1,055 kg/cm2)
  • Oil Capacity: 14,5 gal. (40 liters)
  • Pump Weight: 3,355 lbs. (1,522 kg)
Contact

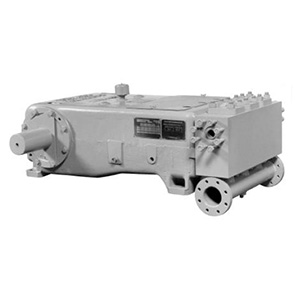

TFE (GD-205T)

GD-205T-(TFE)-7-1-209

Standard Featured

  • Maximum BHP: 205 (153 kw)
  • Maximum RPM: 370
  • No. of Plungers: 3
  • Stroke Length: 5 in. (127 mm)
  • Plunger Load: 13,165 lbs. (5,970 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 3,000 psi (211 kg/cm2)
    • MP – 7,410 psi (521 kg/cm2)
    • HP – 15,000 psi (1,055 kg/cm2)
  • Oil Capacity: 14.5 gal. (55 liters)
  • Pump Weight: 3,355 lbs. (1,522 kg)
Contact

GD-300Q (QAF) QUINTUPLEX

GD-300Q_(QAF)_7-1-207

Standard Featured

  • Maximum BHP: 300 (224 kw)
  • Maximum RPM: 370
  • No. of Plungers: 5
  • Stroke Length:  6 in. (152 mm)
  • Plunger Load: 9,633 lbs. (4,378 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 2,100 psi (148 kg/cm2)
    • MP – 4,600 psi (323 kg/cm2)
    • HP – 7,500 psi (527 kg/cm2)
  • Oil Capacity: 32 gal. (121 liters)
  • Pump Weight: 8,035 lbs. (3,645 kg)
Contact

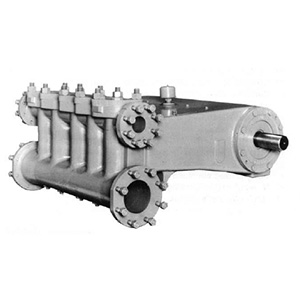

GD-135Q (QBX) QUINTUPLEX

QBX_Bulletin_7-1-220

Standard Featured

  • Maximum BHP: 135 (101 kw)
  • Maximum RPM: 500
  • No. of Plungers: 5
  • Stroke Length:  3,5 in. (89 mm)
  • Plunger Load: 5,500 lbs. (2,495 kg)
  • Discharge Hydrostatic Test Pressure
    • LP – 2,960 psi (208 kg/cm2)
    • MP – 6,250 psi (439 kg/cm2)
  • Oil Capacity: 10 gal. (58 liters)
  • Pump Weight: 1,875 lbs. (851 kg)
Contact
