OPI Pump

Home > OPI Pump

OPI Pump

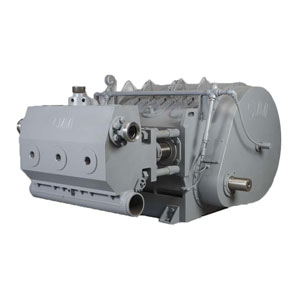

C-2250 Well Service Pump

C2250-Well-Service-(12-04-03)

Standard Featured

  • Maximum Input: 2,250 BHP (1,678 kw)
  • Maximum RPM: 330 RPM
  • Number of Plungers: 3
  • Stroke Length: 8″ (203 mm)
  • Plunger Load: 250,000 lbs. (113,388 kg)
  • Pump Weight: 13,700 lbs. (6,215 kg)
  • Gear Ratio: 6.353:1
Contact

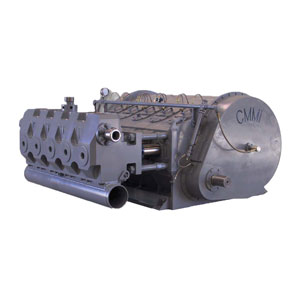

C-2500 Quintuplex Well Service Pump

C2500-WS-(11-7-03)

Standard Featured

  • Maximum Input: 2,500 BHP (1,865 kw)
  • Maximum RPM: 330 RPM
  • Number of Plungers: 5
  • Stroke Length: 8″ (203 mm)
  • Plunger Load: 225,000 lbs. (102,050 kg)
  • Pump Weight: 18,800 lbs. (8,528 kg)
  • Gear Ratio: 6.353:1
Contact

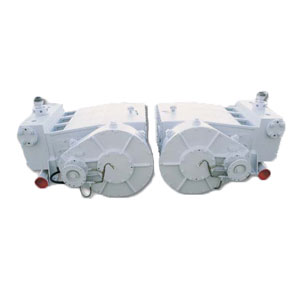

Compact Well Service Pump

Compact-Well-Service-(7-11-03)

Standard Featured

  • Maximum Input: 600 BHP (447 kw)
  • Maximum RPM: 450 RPM
  • Number of Plungers: 3
  • Stroke Length: 6″ (152 mm)
  • Plunger Load: 100,000 lbs. (45,360 kg)
  • Pump Weight: 4,600 lbs. (2,067 kg)
  • Gear Ratio: 4.6:1
Contact

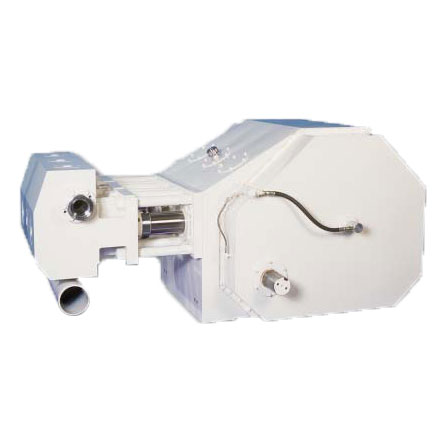

D-2250 Well Stimulation Pump

D2250-Well-Service-(7-11-03)

Standard Featured

  • Maximum Input: 2,250 BHP (1,678 kw)
  • Maximum RPM: 330 RPM
  • Number of Plungers: 3
  • Stroke Length: 8″ (203 mm)
  • Plunger Load: 225,000 lbs. (102,060 kg)
  • Pump Weight: 12,000 lbs. (5,413 kg)
  • Gear Ratio: 6.353:1
Contact

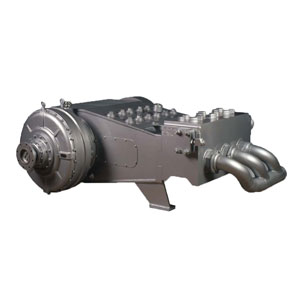

GD-1000 Warthog Well Service Pump

GD1000-WARTHOG-(11-7-03)

Standard Featured

  • Maximum Input: 1,000 BHP (894 kw)
  • Maximum RPM: 375 RPM
  • Number of Plungers: 3
  • Stroke Length: 6″ (152 mm)
  • Plunger Load: 188,500 lbs. (85,680 kg)
  • Pump Weight: 7,650 lbs. (3,470 kg)
  • Gear Ratio:
    • 5.5:1 Planetary Gearbox
    • 5.74:1* Parallel Shaft – Teardrop Gearbox
Contact

GD 1250-LW Light Weight Well Stimulation Pump

GD1250-LW-(11-10-03)

Standard Featured

  • Maximum Input: 1,250 BHP (912 kw)
  • Maximum RPM: 330 RPM
  • Number of Plungers: 3
  • Stroke Length: 8″ (203 mm)
  • Plunger Load: 200,000 lbs. (90,720 kg)
  • Pump Weight: 8,550 lbs. (3,878 kg)
  • Gear Ratio: 9:1
Contact

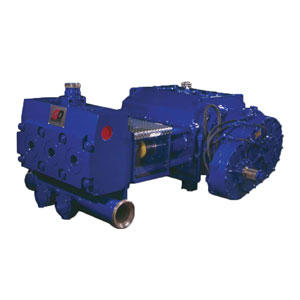

GD 1600-LW Light Weight Well Stimulation Pump

GD1600-LW-(11-10-03)

Standard Featured

  • Maximum Input: 1,600 BHP (1,195 kw)
  • Maximum RPM: 330 RPM
  • Number of Plungers: 3
  • Stroke Length: 8″ (203 mm)
  • Plunger Load: 200,000 lbs. (90,720 kg)
  • Pump Weight: 9,000 lbs. (4,082 kg)
  • Gear Ratio: 9:1
Contact

GD-2500 Quintuplex Well Service Pump

GD2500Q-WS-(11-7-03)

Standard Featured

  • Maximum Input: 2,500 BHP (1,865 kw)
  • Maximum RPM: 330 RPM
  • Number of Plungers: 5
  • Stroke Length: 8″ (203 mm)
  • Plunger Load: 196,350 lbs. (89,000 kg)
  • Pump Weight: 14,570 lbs. (6,625 kg)
  • Gear Ratio: 6.353:1
Contact

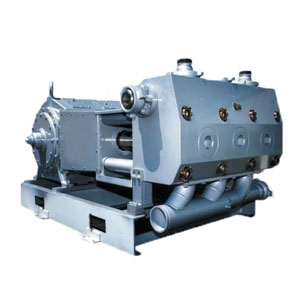

GD-3000 Well Stimulation Pump

GD3000-Well-Service-(7-11-03)

Standard Featured

  • Maximum Input: 3,000 BHP (2,237 kw)
  • Maximum RPM: 250 RPM
  • Number of Plungers: 3
  • Stroke Length: 11″ (279 mm)
  • Plunger Load: 350,000 lbs. (158,760 kg)
  • Pump Weight: 18,550 lbs. (8,368 kg)
  • Gear Ratio: 7.8:1
Contact

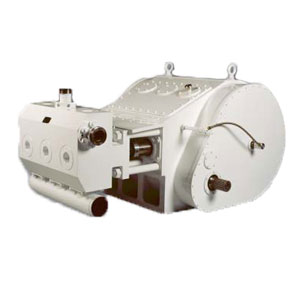

HD2250 Heavy Duty Well Stimulation Pump

HD2250-Well-Service-(7-11-03)

Standard Featured

  • Maximum Input: 2,250 BHP (1,678 kw)
  • Maximum RPM: 330 RPM
  • Number of Plungers: 3
  • Stroke Length: 8″ (203 mm)
  • Plunger Load: 237,500 lbs. (107,719 kg)
  • Pump Weight: 12,650 lbs. (5,738 kg)
  • Gear Ratio: 6.353:1
Contact
