Duplex Pump

Home > Duplex Pump

Duplex Pump

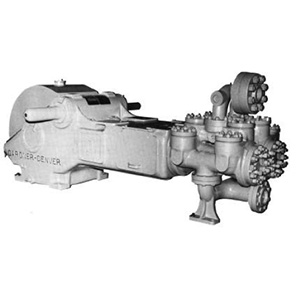

FXD (FC-FXD)

FC-FXD-7-4-206

Standard Featured

  • Maximum BHP
    • Mud Service: 82 (62 kw)
    • Ind’l. Service: 109 (81 kw)
  • Maximum Jackshaft RPM
    • Mud Service: 390
    • Ind’l. Service: 510
  • No. of Pistons: 2
  • Stroke Length: 10 in. (254 mm)
  • Piston Rod Load: 11270 lbs. (5,112 kg)
  • Oil Capacity: 14 gal. (53 liters)
  • Pump Weight: 6,235 lbs. (2,828 kg)
Contact

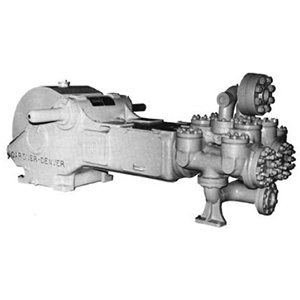

FXE (FC-FXE)

FC-FXE-7-4-211

Standard Featured

  • Maximum BHP
    • Mud Service: 102 (76 kw)
    • Ind’l. Service: 130 (98 kw)
  • Maximum Jackshaft RPM
    • Mud Service: 390
    • Ind’l. Service: 510
  • No. of Pistons: 2
  • Stroke Length: 10 in. (254 mm)
  • Piston Rod Load: 11340 lbs. (6,110 kg)
  • Oil Capacity: 14 gal. (53 liters)
  • Pump Weight: 6,235 lbs. (2,828 kg)
Contact

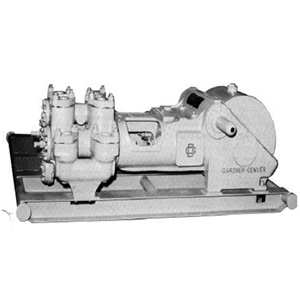

FXX (FD-FXX)

FD-FXX-7-4-202

Standard Featured

  • Maximum BHP
    • Mud Service: 52 (39 kw)
    • Ind’l. Service: 73 (54 kw)
  • Maximum Jackshaft RPM
    • Mud Service: 330
    • Ind’l. Service: 471
  • No. of Pistons: 2
  • Stroke Length: 8 in. (203 mm)
  • Piston Rod Load: 8,036 lbs. (3,645 kg)
  • Oil Capacity: 12 gal. (46 liters)
  • Pump Weight: 4,930 lbs. (2,236 kg)
Contact

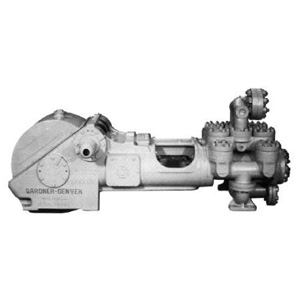

FXX (FC-FXX)

FC-FXX-7-4-203

Standard Featured

  • Maximum BHP
    • Mud Service: 52 (39 kw)
    • Ind’l. Service: 73 (81 kw)
  • Maximum Jackshaft RPM
    • Mud Service: 330
    • Ind’l. Service: 471
  • No. of Pistons: 2
  • Stroke Length: 8 in. (203 mm)
  • Piston Rod Load: 8,036 lbs. (3,645 kg)
  • Oil Capacity: 12 gal. (46 liters)
  • Pump Weight: 4,760 lbs. (2,159 kg)
Contact

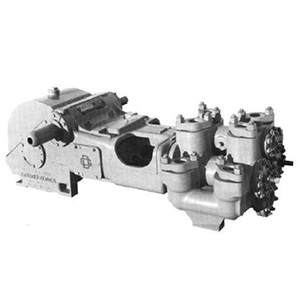

FXD (FD-FXD)

FD_FXD_7-4-205

Standard Featured

  • Maximum BHP
    • Mud Service: 84 (63 kw)
    • Ind’l. Service: 109 (81 kw)
  • Maximum Jackshaft RPM
    • Mud Service: 390
    • Ind’l. Service: 510
  • No. of Pistons: 2
  • Stroke Length: 10 in. (254 mm)
  • Piston Rod Load: 11270 lbs. (5,112 kg)
  • Oil Capacity: 14 gal. (53 liters)
  • Pump Weight: 6,025 lbs. (2,733 kg)
Contact

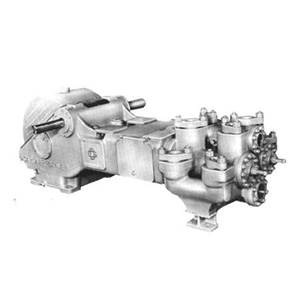

FXE (FD-FXE)

FD_FXE_7-4-210

Standard Featured

  • Maximum BHP
    • Mud Service: 102 (76 kw)
    • Ind’l. Service: 131 (98 kw)
  • Maximum Jackshaft RPM
    • Mud Service: 390
    • Ind’l. Service: 510
  • No. of Pistons: 2
  • Stroke Length: 10 in. (254 mm)
  • Piston Rod Load: 11340 lbs. (6,110 kg)
  • Oil Capacity: 14 gal. (53 liters)
  • Pump Weight: 6,025 lbs. (2,733 kg)
Contact

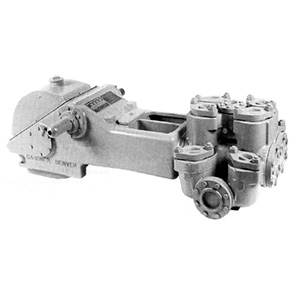

FXF (FF-FXF)

FF-FXF-7-4-200

Standard Featured

  • Maximum BHP
    • Mud Service: 16.2 (12 kw)
    • Ind’l. Service: 19.7 (15 kw)
  • Maximum Jackshaft RPM
    • Mud Service: 439
    • Ind’l. Service: 537
  • No. of Pistons: 2
  • Stroke Length: 5 in. (127 mm)
  • Piston Rod Load: 3,140 lbs. (1,424 kg)
  • Oil Capacity: 3 gal. (11.5 liters)
  • Pump Weight: 1,495 lbs. (678 kg)
Contact

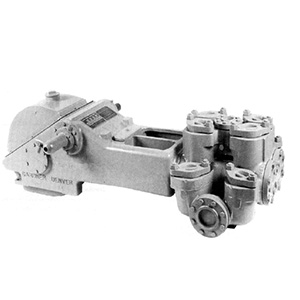

FXG (FG-FXG)

FG-FXG-7-4-201

Standard Featured

  • Maximum BHP
    • Mud Service: 32 (24 kw)
    • Ind’l. Service: 42.5 (32 kw)
  • Maximum Jackshaft RPM
    • Mud Service: 354
    • Ind’l. Service: 472
  • No. of Pistons: 2
  • Stroke Length: 6 in. (152 mm)
  • Piston Rod Load: 6,122 lbs. (2,777 kg)
  • Oil Capacity: 4,5 gal. (17 liters)
  • Pump Weight: 2,300 lbs. (1,043 kg)
Contact

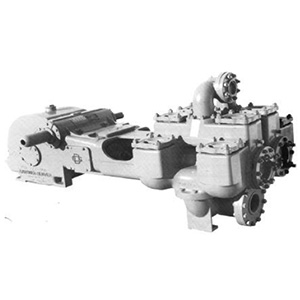

FXD (FY-FXD)

FY-FXD-7-4-207

Standard Featured

  • Maximum BHP
    • Mud Service: 85 (63 kw)
    • Ind’l. Service: 111 (83 kw)
  • Maximum Jackshaft RPM
    • Mud Service: 390
    • Ind’l. Service: 510
  • No. of Pistons: 2
  • Stroke Length: 10 in. (254 mm)
  • Piston Rod Load: 11270 lbs. (5,112 kg)
  • Oil Capacity: 14 gal. (53 liters)
  • Pump Weight: 7,090 lbs. (3,216 kg)
Contact

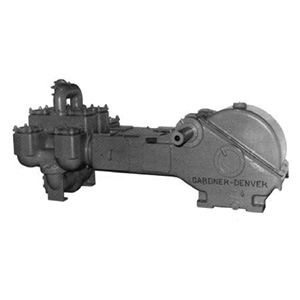

FXE (FY-FXE)

FY-FXE-7-4-212

Standard Featured

  • Maximum BHP
    • Mud Service: 102 (76 kw)
    • Ind’l. Service: 133.4 (99.5 kw)
  • Maximum Jackshaft RPM
    • Mud Service: 390
    • Ind’l. Service: 510
  • No. of Pistons: 2
  • Stroke Length: 10 in. (254 mm)
  • Piston Rod Load: 13480 lbs. (6,110 kg)
  • Oil Capacity: 14 gal. (53 liters)
  • Pump Weight: 7,090 lbs. (3,216 kg)
Contact

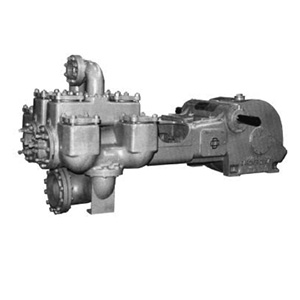

FXX (FY-FXX)

FY-FXX-7-4-204

Standard Featured

  • Maximum BHP
    • Mud Service: 52 (39 kw)
    • Ind’l. Service: 75 (56 kw)
  • Maximum Jackshaft RPM
    • Mud Service: 330
    • Ind’l. Service: 471
  • No. of Pistons: 2
  • Stroke Length: 8 in. (203 mm)
  • Piston Rod Load: 8,036 lbs. (3,656 kg)
  • Oil Capacity: 12. (46 liters)
  • Pump Weight: 5,800 lbs. (2,631 kg)
Contact
