Drilling Pump

Standard Featured

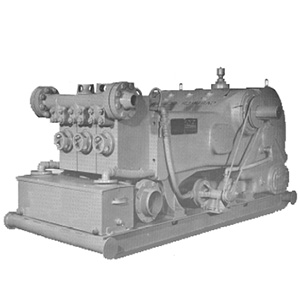

• Eccentric construction.
• Jackshaft extended both sides.
• Helical gears, 4.7 to 1 ratio.
• Pressure lubrication of power end.
• Suction and discharge on either side.
• Clamp connections between plungers or piston rod and extension.
• Bolted-type stuffing boxes.
• Non adjustable type packing.
• Over all length – 106 “ (2692 mm).
• Over all width – 66 3⁄4” (1695 mm).
• Height, feet to – 51 1⁄2” (1308 mm).

Standard Featured

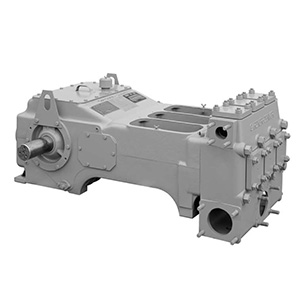

• Double-row spherical roller eccentric bearings.
• ]ackshaft carried on heavy-duty straight roller bearings.
• Replaceable bronze crosshead slides in frame.
• Main gears cut on heat treated, alloy steel rolled rings.
• Full splash lubrication – auxiliary oil pump system forces filtered oil to reservoir and it is gravity fed to working parts.
• Interchangeable fluid cylinders are block alloy steel and heat treated.
• Discharge and suction connections can be made on either side of pump.

Standard Featured

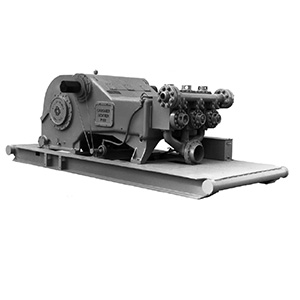

• Eccentric bearings are double-row spherical roller bearings.
• Jackshaft is carried on heavy-duty straight roller bearings.
• Connecting rods are fitted with roller bearings at both ends.
• Replaceable bronze crosshead slides in frame.
• Main gears are of heat-treated alloy steel, bolted to the eccentric.
• Full splash lubrication, with oil pump to trough and gravity fed to working parts.
• Interchangeable fluid cylinders are heat-treated, block alloy steel.
• Valves have three-rib API 7 valves seats.
• Discharge connections can be made on either side of pump.
• Suction connections at center of the manifold.

Standard Featured

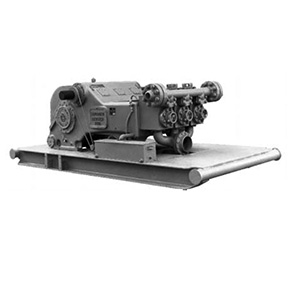

• Eccentric bearings are double-row spherical roller bearings.
• Jackshaft is carried on heavy-duty straight roller bearings.
• Connecting rods are fitted with roller bearings at both ends.
• Replaceable bronze crosshead slides in frame.
• Main gears are of heat-treated alloy steel, bolted to the eccentric.
• Full splash lubrication,with oil pump to trough and gravity fed to working parts.
• Interchangeable fluid cylinders are heat-treated, block alloy steel.
• Valves have three-rib API 7 valves seats.
• Discharge connections can be made on either side of pump.
• Suction connections at center of the manifold.

Standard Featured

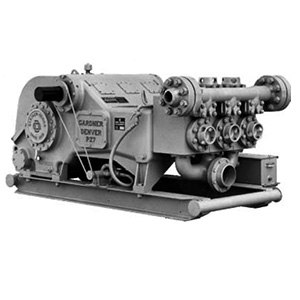

• Eccentric bearings are double-row spherical roller bearings.
• Jackshaft is carried on heavy-duty straight roller bearings.
• Connecting rods are fitted with roller bearings at both ends.
• Replaceable bronze crosshead slides in frame.
• Main gears are of heat-treated alloy steel, bolted to the eccentric.
  Full splash lubrication. Auxiliary oil pump system forces filtered oil to a reservoir where it is gravity fed to working parts.
• Interchangeable fluid cylinders are heat-treated, block alloy steel.
• Valves have three-rib API 7 valves seats.
• Discharge connections can be made on either side of pump. Suction connection is at the center of the cylinder manifold.

Standard Featured

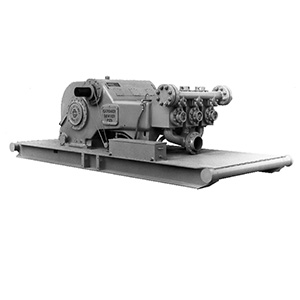

• Eccentric bearings are double-row spherical roller bearings.
• Jackshaft is carried on heavy-duty straight roller bearings.
• Connecting rods are fitted with roller bearings at both ends.
• Replaceable bronze crosshead slides in frame.
• Main gears are of heat-treated alloy steel, bolted to the eccentric.
  Full splash lubrication. Auxiliary oil pump system forces filtered oil to a reservoir where it is gravity fed to working parts.
• Interchangeable fluid cylinders are heat-treated, block alloy steel.
• Valves have three-rib API 7 valves seats.
• Discharge connections can be made on either side of pump. Suction connection is at the center of the cylinder manifold.

Standard Featured

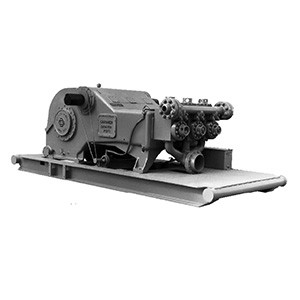

• Eccentric bearings are double-row spherical roller bearings.
• Jackshaft is carried on heavy-duty straight roller bearings.
• Connecting rods are fitted with roller bearings at both ends.
• Replaceable bronze crosshead slides in frame.
• Main gears are of heat-treated alloy steel, bolted to the eccentric.
  Full splash lubrication. Auxiliary oil pump system forces filtered oil to a reservoir where it is gravity fed to working parts.
• Interchangeable fluid cylinders are heat-treated, block alloy steel.
• Valves have three-rib API 7 valves seats.
• Discharge connections can be made on either side of pump. Suction connection is at the center of the cylinder manifold.

Standard Featured

• Maximum BHP: 215 (160 kw)
• Maximum RPM: 300
• No. of Plungers: 3
• Stroke Length: 5 in. (127 mm)
• Plunger Load: 37,000 lbs. (16,965 kg)
• Discharge Hydrostatic Test Pressure
  • 3,600 psi (1,633 kg/cm2)
• Oil Capacity: 12 gal. (45 liters)
• Pump Weight: 3,990 lbs. (1,810 kg)
